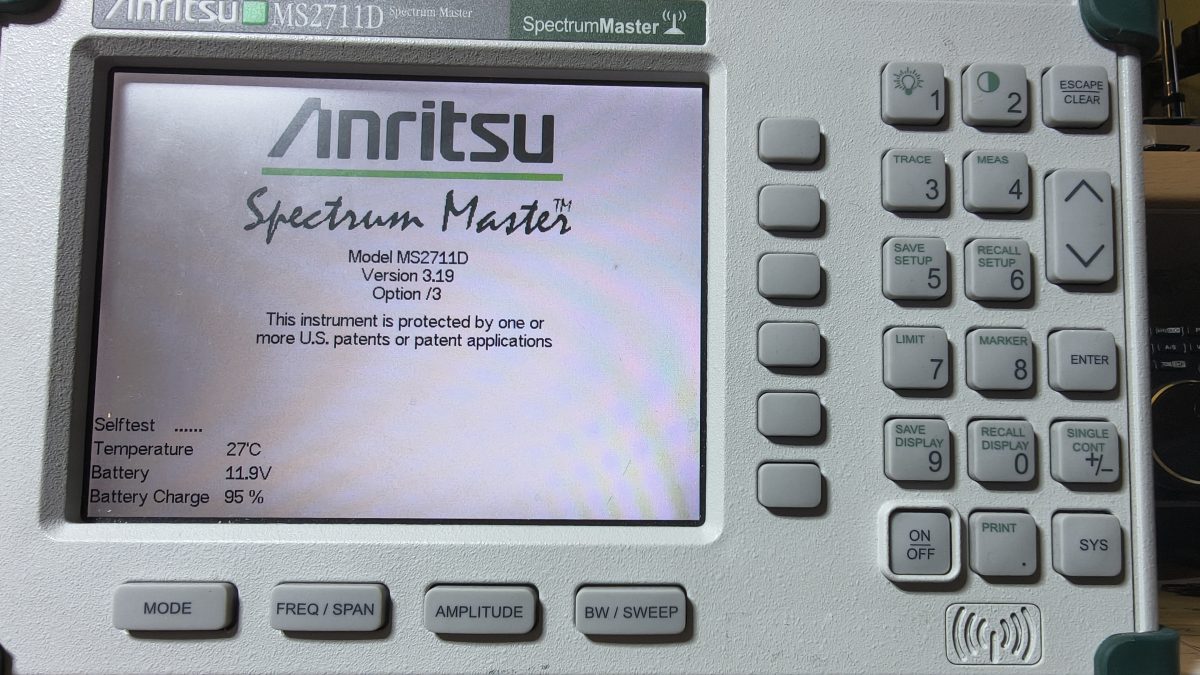

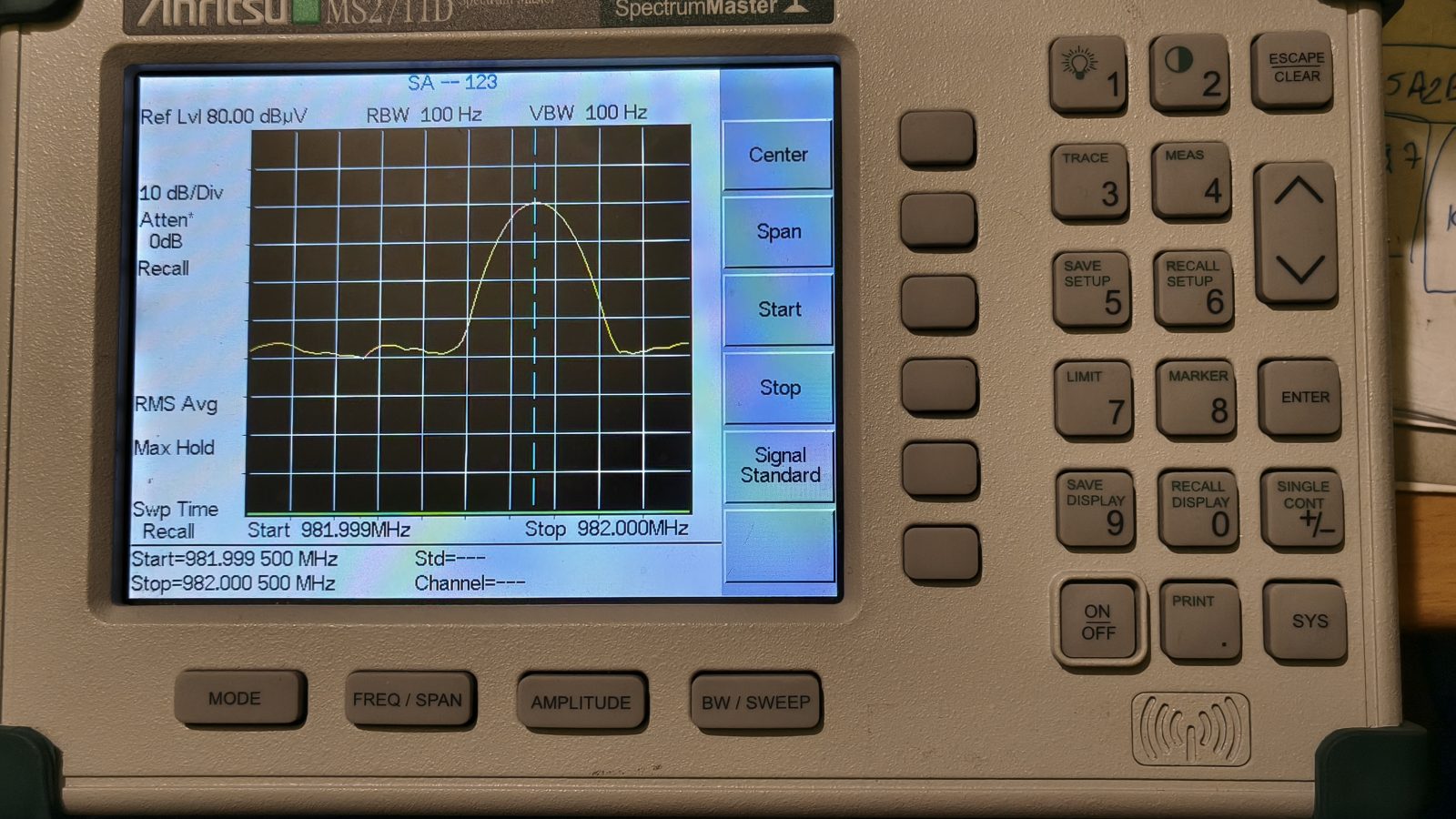

Analizator Anritsu MS2711D (spectrum) 100kHz do 3GHz

Analizator Anritsu MS2711D (spectrum) 100kHz do 3GHz
Handheld, battery-operated design
Built in pre-amplifier (standard)
Lightweight at only 4.9 lbs
Noise Level < -135 dBm typical (preamp on)
Quick Zoom-in, Zoom-out display in 1-2-5 sequence
RBWs: 100 Hz to 1 MHz in 1-3 sequence
VBWs: 3 Hz to 1 MHz in 1-3 sequence
Automatic, manual, and dynamic attenuator control
Amplitude Accuracy +/- 0.5 dB typical
Dedicated smart measurements
Trace Averaging
Reference Level Offset
Trace Overlay
Multilingual User Interface (English, Chinese, French, German, Japanese, Spanish)
Store up to 15 measurement test set-ups
Save up to 200 measurement traces
Alphanumeric labeling of saved measurements
Automatic time and date stamp of saved data
Rechargeable/field-replaceable battery
6 Markers, limit lines and segmented limit lines
50-ohm Interface standard (75-ohm interface capability - instrument internally corrects for adapter loss)
RS232 Interface
Built in AM, FM and SSB demodulation
Transmission Measurement, 25 MHz to 2.5 GHz (option 21)
Power Meter (option 29)
Posiada opcje 3,21 i 29.
Wgrane ma opcje 6/10A/20 ale nie działają z powodu braku hardware.
W komplecie nowy akumulator, torba i zasilacz.
